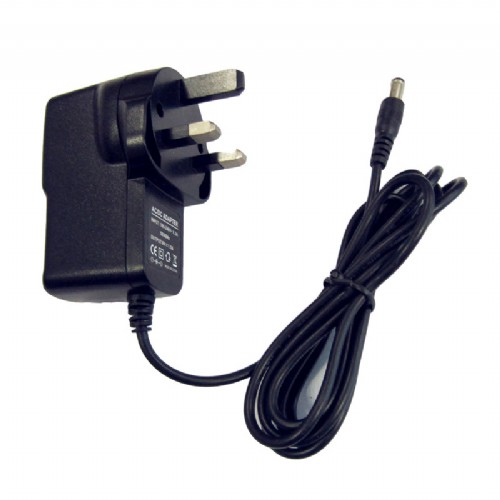

12V DC,1000mA Switching power supply for cctv camera(UK Plug)

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

12V DC,1.0A Wall Mount Switching power supply for cctv,surveillance system and so on.

Light & Convenient Plug In.
Short Circuit,Over-Voltage,Over-Current,Over-load protection.
No load power consumption <0.3W
Plug-in Type
Fully enclosed plastic case
100% full load burn-in test
With Filter.
IC Solution.
SMT Resistor and Capacitor.
DC:5.5*2.1mm(Default),5.5*2.5mm Optional.
With 1.2m Cable.

Input/Output Specifications

Input Voltage

AC 100-240,50/60Hz

Range Voltage

AC 90-264, 47/63Hz

Output Power

12W

Output Voltage

12V

Over Voltage Protection

120%min

Over Current Protection

120%min

Short-cut Protection

Auto recover

Load Regulation

±5%

General Specifications

Operating Temperature

0~40

Storage Temperature

-20~+85

Operating Relative Humidity

5%~95%RH

Withstanding Voltage

AC 3000V(Min),5mA(Max)

Insulation Resistance

DC 500V 100M Ω(Min)

MTBF

>35,000Hrs

Size

75*45*28mm

Input/Output Specifications
Input Voltage	AC 100-240,50/60Hz
Range Voltage	AC 90-264, 47/63Hz
Output Power	12W
Output Voltage	12V
Over Voltage Protection	120%min
Over Current Protection	120%min
Short-cut Protection	Auto recover
Load Regulation	±5%
General Specifications
Operating Temperature	0~40
Storage Temperature	-20~+85
Operating Relative Humidity	5%~95%RH
Withstanding Voltage	AC 3000V(Min),5mA(Max)
Insulation Resistance	DC 500V 100M Ω(Min)
MTBF	>35,000Hrs
Size	754528mm

12V DC,1000mA Switching power supply for cctv camera(UK Plug)

Product descriptions

Remark: 12V DC 1000mA and 12V DC 2000mA for you to choose.(Euro Plug,USA Plug,UK Plug to Choose )
