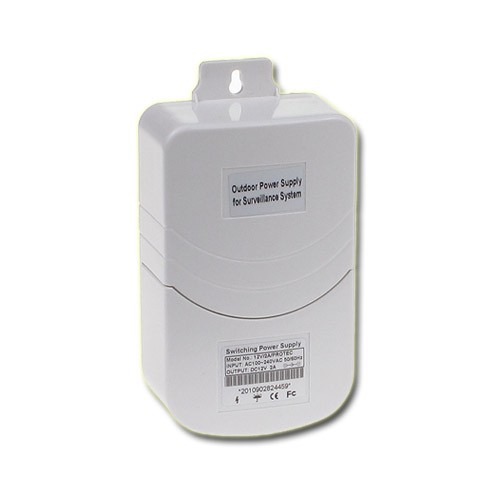

12V DC,2.0A White Rainproof Switching power supply for cctv camera.
Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series
12V DC,2.0A Outdoor White Rainproof Switching power supply for cctv,surveillance system and so on.
Short Circuit,Over-Voltage,Over-Current,Over-load protection.
No load power consumption <0.3W
Fully enclosed plastic case
100% full load burn-in test
With Power Indicator.
With Filter.
IC Solution.
SMT Resistor and Capacitor.
With Lightning Protection.
DC:5.5*2.1mm(Default),5.5*2.5mm Optional.
100% Enough 2.5A,Here market Label is Show 2.5A or 3.0A.
Input/Output Specifications |
|
Input Voltage |
AC 100-240,50/60Hz |
Range Voltage |
AC 90-264, 47/63Hz |
Output Power |
24W |
Output Voltage |
12V |
Over Voltage Protection |
120%min |
Over Current Protection |
120%min |
Short-cut Protection |
Auto recover |
Load Regulation |
±5% |
General Specifications |
|
Operating Temperature |
0~40 |
Storage Temperature |
-20~+85 |
Operating Relative Humidity |
5%~95%RH |
Withstanding Voltage |
AC 3000V(Min),5mA(Max) |
Insulation Resistance |
DC 500V 100M Ω(Min) |
MTBF |
>35,000Hrs |
Size |
75*45*28mm |
