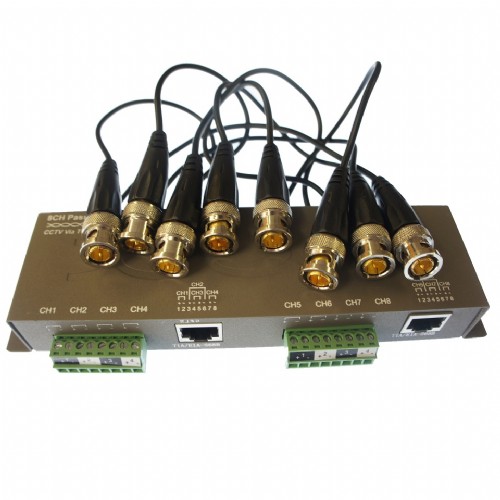

8CH Passive HD TVI/CVI/AHD Video Balun
Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series
Model |
8 Channel Passive Video Transceiver (RX-908TP ) |
|
Applied Devices |
CCTV cameras, monitors, DVR, switchers, IP encoders, etc |
|
Video |
Video Format |
PAL, NTSC, SECAM |
Operating Frequency |
DC to 8MHz |
|
Max Distance |
UTP Category 5e (24AWG) Color: 1100ft(330m) B&W: 1950ft(600m) |
|
Common-mode/Differential-mode rejection |
15 KHz to 5 MHz 60 dB typ |
|
Impedance |
2*8PIN UTP Terminal Block ; 8*BNC (female) Connector |
|
Attenuation |
1.5 dB typ Max |
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
Category Type |
2 or better |
|
Impedance |
100 ± 20 ohms |
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
Power |
|
No external power required |
Connector |
Video input/output |
BNC connector |
Video input/output |
Screw terminal |
|
Mechanical |
Housing |
Aluminum alloy |
Body Color |
Dark blue |
|
Dimensions (L*W*H) |
120*78*32mm(with BNC) |
|
Net Weight |
650g |
|
Environmental |
Operating Temperature |
-20º ~ 70º C |
Relative Humidity |
0~95% (non-condensing) |
|
Storage Temperature |
-40º ~ 150º C |
• 8 channel passive video transceiver.
• Full-motion color video signal up to 1100ft(330m) via UTP cat5e/6.
• NTSC,PAL&SECAM video format compatible.
• Real-time transmission.
• No power required.
• 2* UTP RJ45; 2*8PIN UTP Terminal Block.
• 8(female) BNC.
• Exceptional interference rejection.
• 60 dB crosstalk and noise immunity.
• Compact size and easy installation.
Applications:
• Multimedia network teaching system
• Medical monitoring display system
• Industrial antomation control system
• Banking,securities,financial information display system
• Remote network server monitoring
• Depatment store security
• Casino security
• Hospitals,airports,schools and banks
• Security monitoring system
