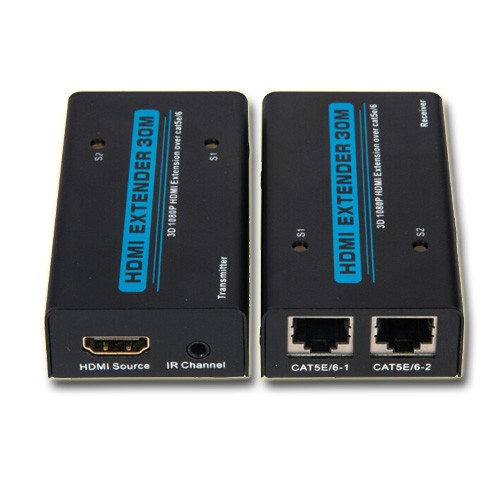

HDMI Extender 30M,3D Full HD 1080P,HDMI to RJ45 Extender Over CAT5E/6x2 With IR

Basic Function

1、 No need to set up, plug and play；

2、 3D support；

3、 Full HD 1080P extension to 30m；

4、 CEC pass through.

Operation

1、Connect the signal source(such as HD-DVD,PS3,STB)with HDMI input interfaces.

2、Connect the display devices(such as HD-LCD,HD-DLP)with HDMI output interfaces.

3、Connect the Cat5e/6-1 of TX to the Cat5e/6-1 of RX with network cable EIA / TIA 568B.

4、Connect the Cat5e/6-2 of TX to the Cat5e/6-2 of RX with network cable EIA / TIA 568B.

Specification

HDMI version----------------------------------------------HDMI 3D

HDCP version---------------------------------------------HDCP1.2

Support HDMI resolution-------------------------------1080P/1080i/720P/576P/576i/480P/480i

Support video color bit----------------------------------deep color 24bit/36bit

Support audio format------------------------------------LPCM/Dolby-AC3/DST7.1/DSD

Input video signal-----------------------------------------5.0Volts P-P

Output cable distance------------------------------------≤5 Meter

Input cable distance--------------------------------------≤5 Meter

Data transfer speed---------------------------------------6.75Gbps-10.2Gbps

Operating Humidity range--------------------------------5 to 90%RH(No Condensation)

Operating Temperature range--------------------------- -15 to+55℃（5 to 131 ℉）

Power adapter format-------------------------------------Input AC(50Hz-60Hz)100-240V

Power supply------------------------------------------------ DC 5V



Aplication

Panel Introduction



Package Content



1、 Power supply

2、 User manual

3、 HDMI Extender Receiver & Transmitter
