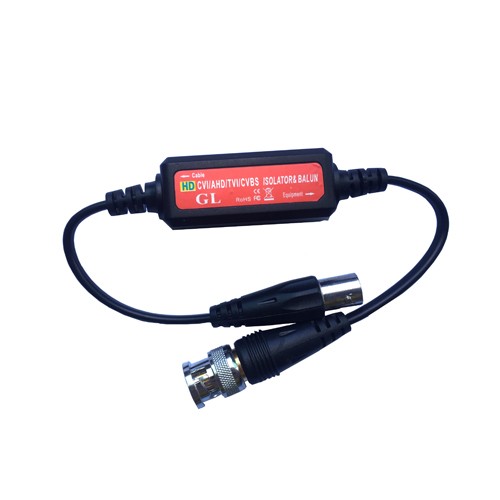

GL101A is a no extra power required High-performance, High reliable Coaxial Video Signal Ground Loop Isolator for HD AHD/CVI/TVI cameras. This device use magnetic isolation technology, in transmission it solve interference problem, improve video signal anti-jamming power, Effectively eliminate image crack, crosstalk, rolling etc. It is wide used in CCTV surveillance system.

Product Features：

1. No extra power required.

2. Magnetic isolation technology, in transmission it solve interference problem, improve video signal anti-jamming power, Effectively eliminate image crack, crosstalk, rolling.

3. Isolation Voltage: 600V

4. ABS engineer Plastic, Compact Size.

5. Push in, easy to install.

Specification:

Category		Description
Function	Input Signal Channel	1CH
	Output Signal Channel	1CH
	Transmission Distance	O~300m
Video Transmission features and Ports	Transmission Port	2 Push-Pin in
	Coaxial Video Connector	Female BNC
	Video Format	PAL,NTSC,SECAM
	Frequency Response	5Hz~10MHz
Operation Environment	Working Temperature	0~55℃
	Store Temperature	-20~70℃
	Humidity(non-condensing)	0~95%
The attribute	Size(LWH)	62mm33mm25m, 15cm cable
	Case	ABS Engineer Plastic
	Color	Black
	Net Weight	44g
Reliability	MTBF	>20000hours
