Ethernet over coaxial-Lan Converter single channel EOC
Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series

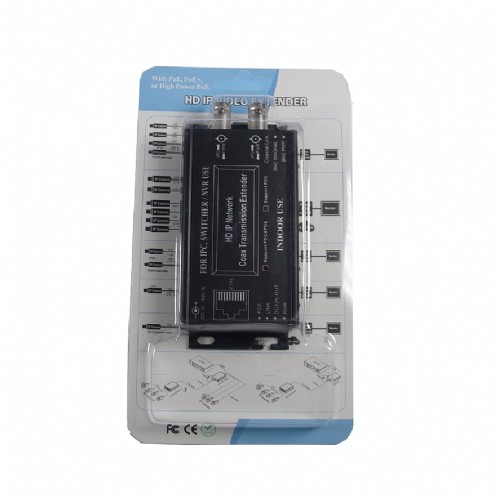

HD IP POE Extender is a new designed Ethernet Extender Device. This Device is designed to extend Network signal and Power over 1PC existing coaxial cable, and able to live transmit multi-channel Power + Network date signal, the Max distance is up to 2500M(Power: 600M). 2pc BNC design, supports connection of 2 channel branch line at same time. The total power is 100W, each BNC max is 50W. Network max baud-rate is up to 100Mbps.
It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone.
Features:
Inbuilt Industry level intelligent Auto-monitoring module(this function is optional)
Embedded independent intelligent auto detection circuit. In all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. It is the best choice of CCTV surveillance transmission domain.
◆Transmit 10/100 Mbps Full Duplex Ethernet up to 8000ft(2500m) or more.
◆Transmission Media: Coaxial Cable(Best), 586B, CAT5e/6
◆Input Voltage: DC12V~53V (POE: DC48V~53V).
Support Power Over Coax & Power over Ethernet at same time.
2pc BNC design, Support connect 2 channel branch line, The total power of electricity is 100W, each BNC max is 50W.
◆Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient.
◆Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
◆Advanced 128-bit AES encrypted transmission and PoE+ power technology
◆Excellent Protection: Built-in transient protection; industrial temperature range. Excellent
lightning protection and strongly Anti-interference, surge protection.
Follow below steps to install:
1)Firstly Connect the signal cables, then connect Power. (Install with power may destroy device)
2)Connect NVR/Switches:
--RJ45 Ethernet(CAT5e/6) cable one side connect the Device Ethernet Port
--RJ45 Ethernet(CAT5e/6) cable another side connect NVR/Switches Port
--Use Coaxial cable one side connect the Device BNC
3)Connect the IPC.
-- RJ45 Ethernet(CAT5e/6) cable one side connect the Device Ethernet Port
-- RJ45 Ethernet(CAT5e/6) cable another side connect IPC net Port
-- Use Coaxial cable another side connect the Device BNC
4)Check the installation is correct or not, device is no damage, guarantee all the link is stable, connect the power supply cable, to power the whole system.
5) The devices can not overlay, it may cause serious interference, make the network loss link.
It can be installed beside each other.
6) when transmit Network + Power: noted that the Master device BNC total power is 100W;
So that the slaver devices connect POE IPC total power should be same as or less than 100W.
Failure removal:
If the device meet problem, follow the below steps to solve:
lAccording to the LED indicator primary localize the trouble occur region.
lIf LED all is lighting off, please check whether the system power is normal.
lIf only Net port LED indicator is lighting off, please check whether the network cable link is
Loose, and check all the IPC/Switches etc Device is working normally.
lIf only Slaver device LED indicator is lighting off, please check the below reasons:
--Whether the Coaxial cable is LOOSE.
--Whether the Coaxial Cable length beyond the MAX transmission distance.
--Whether the 2pcs interconnection device passcode is not same.
After above detection, if the trouble is still not solved, please contact the Supplier.
Specification:
Item |
Description | |
Technology Standard | Standard | HomePlug AV |
IEEE 802.3 10/100 Ethernet(100Mbps) | ||
IEEE 802.3u Fast Ethernet | ||
EnEncryption Algorithm | Algorithm | 128-bit AES |
Power | Supply mode | Power adapter |
Input Voltage range | DC12V~53V (POE: DC48V~53V) | |
Consumption | <2W | |
Ethernet Interface | Port | RJ45 |
Signal Type | 10/100Base-Tx | |
Distance | 100M (Max) | |
Coax Connector | Port | BNC |
Transmission rate | 80Mbps TCP, 90Mbps UDP | |
Total Power | 100W | |
Distance | IP: 2500M (Max); IP+Power: 600M(Max) | |
Status Indicator | Power indicator | RED (Power On: keep lighting, Power Off: lighting off) |
Far-end device indicator | GREEN (keep lighting: Device connection ready. Flicker: signal transmission) | |
Coax Power indicator | GREEN (Power on: keep lighting, Power off: lighting off) | |
POE indicator | YELLOW (POE on: keep lighting, POE off: lighting off) | |
Network link indicator | GREEN (Network linking: keep lighting, Signal transmission: Flicker) | |
POE Port | Transmit Power or not | Optional (Default: support transmit power) |
POE Standard | IEEE 802.3AT | |
POE total Power | 4/5,7/8 output power 50W; | |
1/2, 3/6 output power max 35W. | ||
POE Power Wires | Line Pair function | 1/2 +、3/6-;4/5+、7/8- line pair self-adaption |
Operation Environment | Operation Temperature | 0℃~55℃ |
Storage Temperature | -20℃~70℃ | |
Humidity | 0~95% | |
Size | Dimension | 121.5*81*23.5mm |
Reliability | Material | ABS plastic+PC |
Color | Black | |
Weight | 180g |
