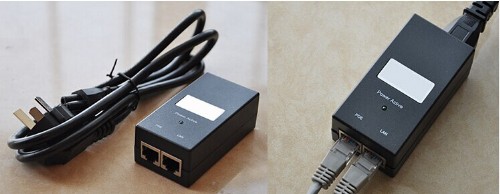

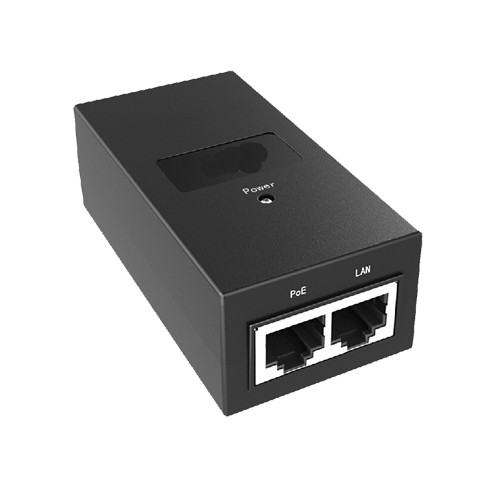

POE power adapter

Product descriptions

Features:

• 10/100Mbps 48V 0.5A Single Port POE Power Adapter;

• Diagnostic LEDs;

• Non-Vented Case;

• Full Protection OTP, OCP, OVP;

• Data and Power carried over one Ethernet Cable.

Specifications:

Type	AC/DC power
Model Name	DC4805 POE adapter
Transistor Connection Mode	Single end
Input Voltage Range	AC100~240 V
AC Input Frequency	50/60Hz
Output Voltage	DC48V 0.5A
Output Power	24W
Work Efficiency	85%(MIN) at Rated Voltage
Output Ripple Noise	<180mVp-p at full road with 20MHz bandwidth
Turn On Delay Time	<3S (AC:110V and full load)
Safety protection	Over voltage and current protection for power adapter
Leakage Current	0.25mA max. @ 254V AC 60Hz
Voltage Accuracy	5%
Voltage Regulation Factor	5%
Load Regulation	5%
Operating Temp.	0°C~+50°C
Storage Temp.	-20°C~+85°C
Safety Standard	EN60950-1 UL60950-1 ESD (EN61000 3-3) CAS (60950 ITE/TE) FCC Part 15 subpart B Class B AN/NZS CISPR 22:2006
Data connector	RJ45 +48V
Product Weight	176g
Product Size	1225840mm

Applications:

• IP Telephones ;

• Wireless Network Access Points ;

• Blue Tooth Access Point;

• Security Camera;

• IP Print Servers, and etc.…
