Tuya ZigBee Wifi Gateway
Product descriptions
Product Paramenters

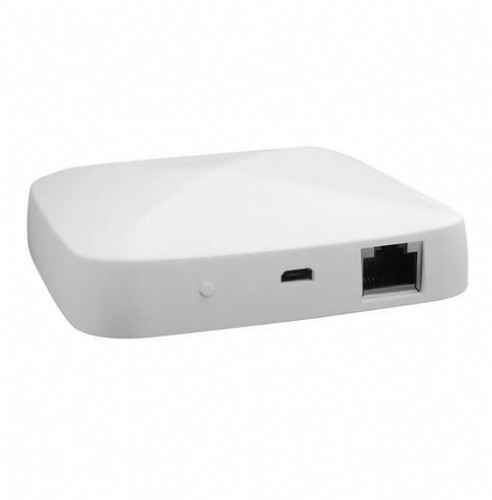

Wi-Fi/BLE/Zigbee 3 In 1 Multi Mode Tuya Wifi Zigbee Hub Gateway
Product overview
Mini multi-mode gateway supports Wi-Fi+Bluetooth+Zigbee multi-protocol communication. Bluetooth MESH (SIG) and Zigbee Total Devices support 128 stable controls. The gateway communicates with the cloud and mobile phones through Wi-Fi, and can view and remotely control other connected Zigbees through the App device and Bluetooth MESH (SIG) devices, and user-implemented device addition, device reset, third-party control and sub-setup equipped with group control to meet applications such as smart home
Application field
-- Smart LED
-- Smart home/home appliances
-- Intelligent low-power sensor
-- Smart home/home appliances
-- Intelligent low-power sensor
Product features
-- Control sub-devices: users can control sub-devices under the gateway through the gateway, and support remote control and group control; -- One-click networking: Support multiple devices to be added at the same time, simplify the tedious network distribution steps, and make the device networking operation more user friendly; -- Cloud scenario/automation: Through the scenarios and automation settings in the APP, the sub-devices under the gateway can be used as execution or triggers Linkage with other smart devices;
-- Local scene/automation: The scene/automation is executed locally first. Through this function, the user-set smart scene/automatic. It can still be executed efficiently in the case of external network interruption;
-- Support security functions, the product is connected to Tuya Security SAAS platform;
|

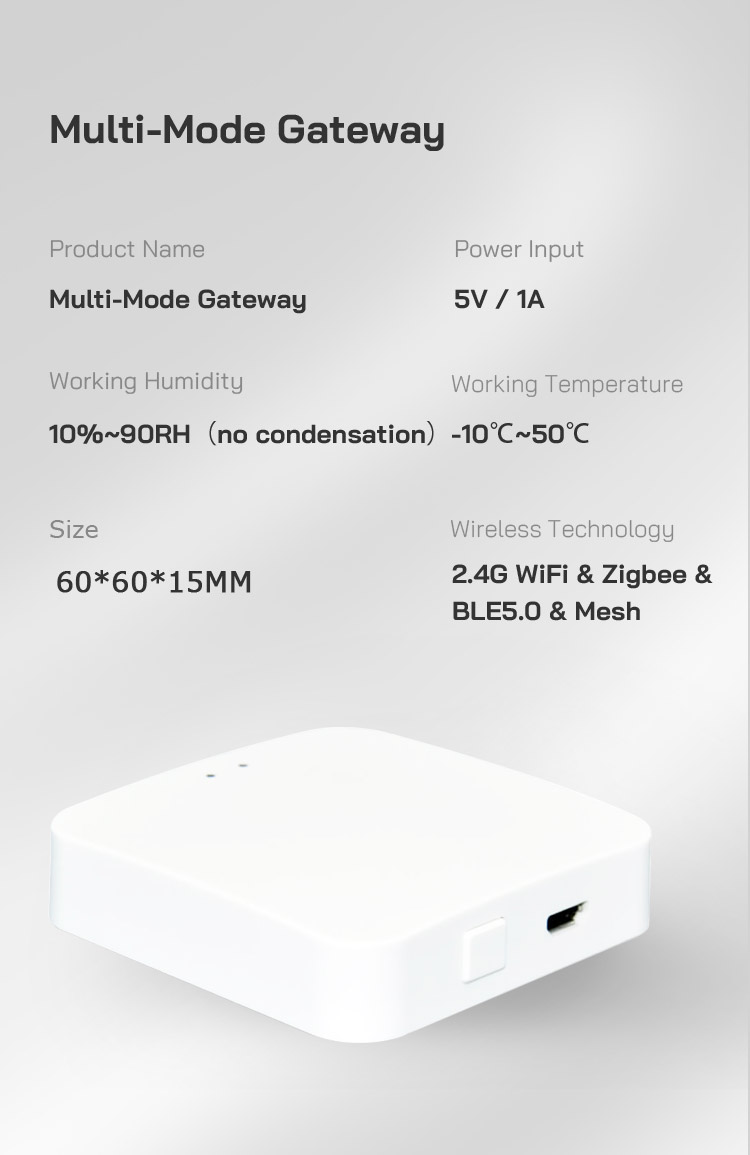

Physical characteristics
|
|
|
Power supply
|
MicroUSB DC5V
|
|
Working current
|
<1A
|
|
Status indicator
|
2 LED (WIFI+Zigbee/Bluetooth)
|
|
Operation buttons
|
1 button (reset)
|
|
Operation environment:
|
-10℃-50℃
|
|
Hardware interface
|
1 Micro-USB
|
|
Wireless technology
|
WIFI 802.11 b/g/n
|
|
Zigbee 3.0 ; BLE5.0
|
|
|
Antenna type
|
Built-in onboard antenna
|
|
Antenna gain information
|
2.2dBi
|
|
Size
|
115*115*28.1MM
|
|
RF characteristics
|
|||
|
|
WIFI
|
BLE&Mesh
|
Zigbee
|
|
Wireless frequency
|
2.400 ~2.4835GHz
|
2.400 ~ 2.480GHz
|
2.400 ~ 2.480GHz
|
|
Network standard
|
WIFI 802.11 b/g/n
|
BLE5.0
|
IEEE 802.15.4
|
|
Transmit power
|
11dBm
|
11dBm
|
11dBM
|
|
|
|
|
CH11 - CH26 Chanel
2405MHz； 2410MHz； 2415MHz; 2420MHz; 2425MH z; 2430MHz; 2435MHz ··· 2480MHz That is a channel is added every 5MHz. |
|
Transmission rate
|
11b:1,2,5.5, 11 (Mbps)
11g:6,9,12,18,24,36,48,54(Mbps) 11n:HT20 MCS0~7 11n:HT40 MCS0~7 |
1Mbps/2Mbps
|
250Kbps
|
|
Network performance
|
|||
|
|
AES 128bit Encryption
|
||
|
WPA-PSK/WPA2-PSK，WPA/WPA2 Security mechanism
|
|||
|
|
Remote App configuration
|
||
|
WIFI module firmware upgrade
|
|||
|
Zigbee& Bluetooth module firmware upgrade
|
|||
|
Maximum number of
connections |
Zigbee Max Node =200
|
||
|
BLE&Mesh Max Node= 128
|
|||
Packing & Delivery
|
Packing Details for Zigbee Hub Gateway
|
|
|
PACKING
|
Neutral color box or customer's packing
|
|
PCS/CARTON
|
100PCS
|
|
GW/CARTON
|
7KG
|
|
CARTON SIZE
|
22*33*26CM
|
Products Description
Multimode Gateway Intelligent Home Control Center
Zigbee 3.0/Bluetooth/Intelligent linkage/App remote control

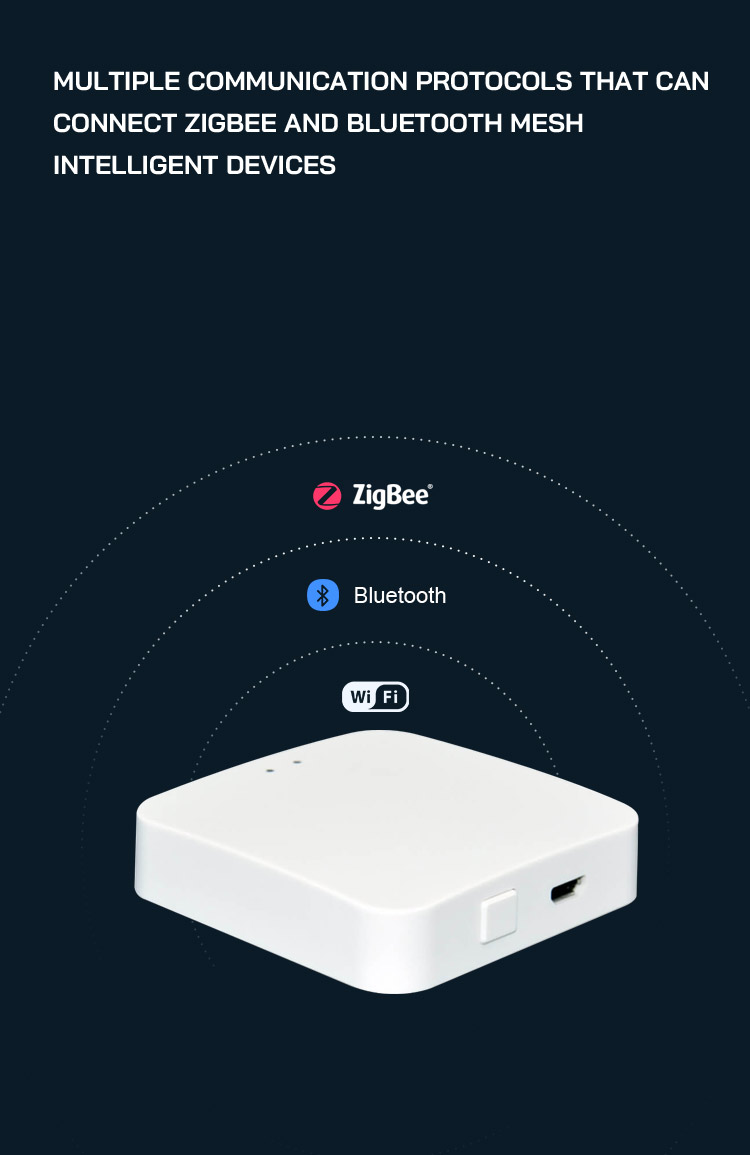

Multiple Communication Protocols That Can Connect Zigbee And Bluetooth Mesh Intelligent Devices
It can also support wireless protocols such as zigbee3.0, wifi, Bluetooth, etc.
APP Remote Control
Control your decicess anytime,anywhere with the smart life APP
Support For More Powerful Zigbee 3.0 Devic
High security/High openness and compatibility/Complete solution/The network is more stable/Low power consumption..
Multiple Guardian Modes,Keep The Family Safe At All Times
You can customize the corresponding security scenarios as needed. For example, in guardian mode at home. Only turn on the water leak and smoke alarm, and turn on the intelligent camera when switching away from home mode. door and window sensors and other monitoring.
Wifi Dual Antenna Structure More Stable Signals And Wider Coverage
Wireless technology, which has a stronger signal,better wall peneteration ability,and
wider coverage. the transmission distance can reach up to 200m2 in open environment
Supports Three Major Communication Protocols Make Your Smart Home Easier
Smart multi mode gateway supports zigbee,wifi,blustooth and bluetooth mesh communication protocol devices one gateway can realize the interconnection of the
above differfnt protocol devices,making the smart home easier.
Whole House Intelligence To Create a Better Way of Life For You.
Zigbee has intelligent sockets, light control switches, curtain motors, intelligent clothes drying machines, complete products such as intelligent door locks, air conditioning partners, doors and windows and human body sensors, the combination can easily complete the intelligent linkage of the whole house, create an automated home for you to achieve, Intelligent security, intelligent light control, environmental monitoring and regulation, intelligent sunshade.
