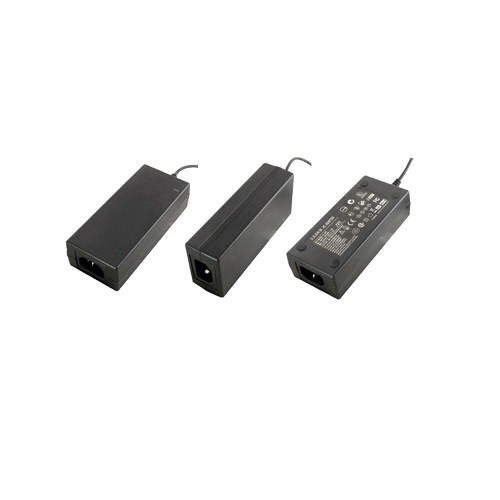

12V 3A dc desktop power supply

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

12V 3A dc desktop power supply(ac-dc desktop power adapter)
• Universal AC input / Full range
• Protections: Short circuit / Overload / Over voltage
• Fully enclosed plastic case
• LED indicator for power on

Input/Output Specifications
Input Voltage	AC 100-240,50/60Hz
Range Voltage	AC 90-264, 47/63Hz
Output Power	36W
Output Voltage	12V
Over Voltage Protection	120%min
Over Current Protection	120%min
Short-cut Protection	Auto recover
Load Regulation	±5%
General Specifications
Operating Temperature	0~40
Storage Temperature	-20~+85
Operating Relative Humidity	5%~95%RH
Withstanding Voltage	AC 3000V(Min),5mA(Max)
Insulation Resistance	DC 500V 100M Ω(Min)
MTBF	>50,000Hrs
Size	1205333mm
