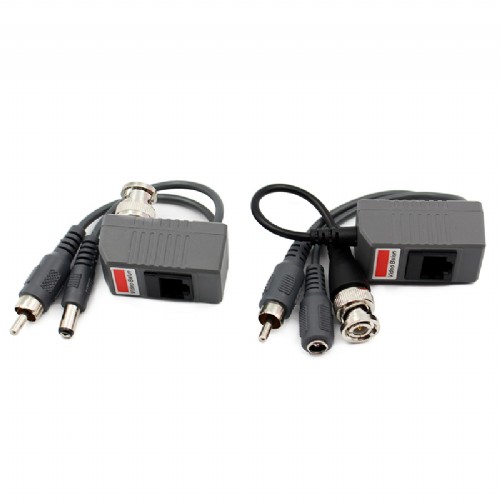

1CHannel Passive Video+Power+Audio Balun over Twisted pairs.

Product descriptions

FEATURES:

Video transmission via UTP CAT5 or above cable.

Excellent noise interference rejection and built-in transient protection.

Cost-effective point-to-point transmission.

High quality image.

Twisted Pair Video Baluns, for sending video signals up to 100m

Electrical/ Video
Power Source	No
Wire Type	Unshielded Twisted Pair (24 AWG maximum)
Wire Category	Cat3 or better
Wire Impedance	100 ohms +/- 10%
Transmission Distance	400 meters (color) maximum using Cat5e or Cat6
DC Loop Resistance	52 ohms per 1000 feet (18 ohms per 100m)
Video/ Audio Characteristics
Video Input/ Output	One BNC (Male)
Input Impedance	75 ohms
Video Format	NTSC, PAL, SECAM, CCIR
Frequency Reponse	DC to 6MHz
Common Mode/ Differential Mode Rejection	> 60dB typical
Common Mode/ Differential Mode Rejection	(frequency range from 15KHz to 6MHz)
Audio/ Data	Optional
Surge suppression	Yes
Control	No
Mechanical
Connector
BNC	Video input/ output
Terminal Block	-
RJ45	UTP input/ output
General
Operating Temperature	-10~+50°C
Relative Humidity	0 to 95%, non-condensing
Dimensions	4.3cm x 2cm x 2.1cm
Weight	40g
