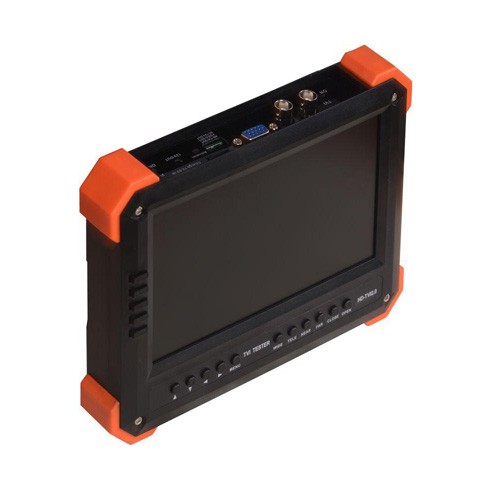

7inches HD-TVI CVI and AHD Video CCTV Tester monitor

The RX-70TAC tester supports support up TVI: 720P@25/30/50/60，1080P25/30 3MP@18、4MP@25/30,5MP12.5/20;AHD: 720P25/30, 1080P25/30，3MP@18,4MP@15/25/30, 5MP@20; CVI: 720P25/30/50/60,1080P25/30.. The tester supports HD-TVI,CVI, AHD,CVBS/HDMI/VGA Input. Use it independently 12V/2A power adapter that has the ability to power up a camera even before installing

Main features:

7 inch LCD monitor
HD-TVI,CVI, AHD,HDMI, VGA, analog CVBS 5-in-1 input
TVI: 720P@25/30/50/60，1080P25/30 3MP@18、4MP@25/30,5MP12.5/20;AHD: 720P25/30, 1080P25/30，3MP@18,4MP@15/25/30, 5MP@20; CVI: 720P25/30/50/60,1080P25/30.
12V/2A Power Adapter for Camera Testing

Highly equipped, the most cost effective choice.

Equipped with 18650 battery.Device can work 7 hours after a single charge.

12V,2A Output function can be helpful when no external power supply for the camera.

Hikvision Coaxial control---- Press Menu key to call up TVI Camera or TVI dome camera's built-in menu

HDMI/VGA/CVBS Video test& HD-TVI ,CVI and AHD Video Test Switch manually

PAL/NTSC Auto switch

Coaxial Control Protocol

HD-TVI/CVI/AHD/HDMI/VGA/CVBS Input
Built-in 18650 battery,12.6V
High capacity li-polymer battery, charge time 4 hours, and work time 6-7 hours.
DC12,2A power output
