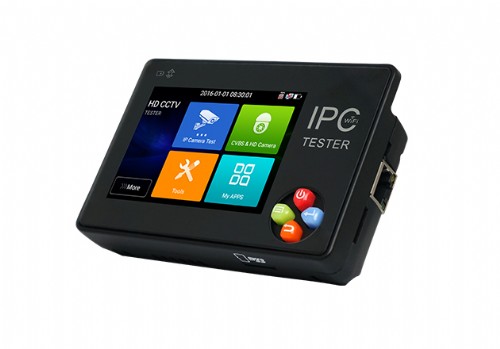

3.5 inch 4K H.265 IP & CVBS Android system IP Camera tester

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

Camera test:

● 3.5 inch touch screen, 480*320 resolutions

● H.265 & H .264 IP, 4K video display via mainstream

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision, Dahua and other camera test, enter ONVIF app, input username and password to test

● Install the Chrome browser, convenient to set AXIS, Hikvision and other camera parameters

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

● DC 12V 1A power output

● CVBS camera test and PTZ control

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Other functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /3000mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 8 hours

LCD	Item series	RX-IPC1600+
	Display	New 3.5 inch wide angle touch screen ,480*320 resolution
Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
		PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
	IP camera test 4k/H.265/H.264	IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
		Rapid Video	Auto view the video, create testing report
		Hik test tool	pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
	IP& CVBS test	IP& CVBS test at the same time ,converter test from analog to digital with dual test window
	Zoom Image	4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Network Port	10/100/1000M auto adapt, RJ45
Power output	12V/1A power output	DC 12V 1A power output, supply temporarily power for the camera
TesterPlay	screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone)
Network test	Trace route, Link monitor , DHCP server, port flashing , Ping test
Wi-Fi	Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor	Captures and analyzes the command data from controlling device，also can send hexadecimal
Drop-down menu	You can select CVBS ,IP setting, LAN info etc in any interface
External power supply	DC 5V 2A
Battery	Built-in 3.7V Lithium polymer battery ,3000mAh
Rechargeable	After charging 3-4 hours, normal working time 8 hours
Operation setting	OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off	1-30 (mins)
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/Weight	115mm x 75mm x 33mm / 300g
