BNC to VGA Video Converter (High Quality Serial Converter)
Specification parameter
1, 1 Channel video input
2, 1 channel S-video input
3, 1 Channel VGA signal input
4, 1 Channel VGA signal output
5, DC 5V outside power supply or USB port
6, Supports signal: Video, S-video, CVBS, VGA
7, Supports system; PAL/NTSC
8, Output Resolution: 1280×1024@60Hz、1024×768@60Hz、800×600@75Hz、1440x900@60Hz、1680*1050@60Hz、 1920*1080@60Hz,1920*1200@60Hz
9, Image freeze
10, Save current work estate when the power cut
11, Caption prompt in work estate
12, Pure hardware design, just Plug & Play No software or driver requirement, compatible with any operation system
13, Simultaneous display on VGA monitor and TV
Application
1.School/classroom e-Education
2.DVD/VCD/GAME/VOD/KTV from PC and shown on big screen TV
3. Interactive network conference system
4. Video output to VCR recorder for software editing picture/power-point
5. Business training and presentation
Package Content
AV to VGA video signal converter
Power adapter (Switching)
VGA connection cable,Etc
Remark
This Item We Still have General Quality Serial Converter.

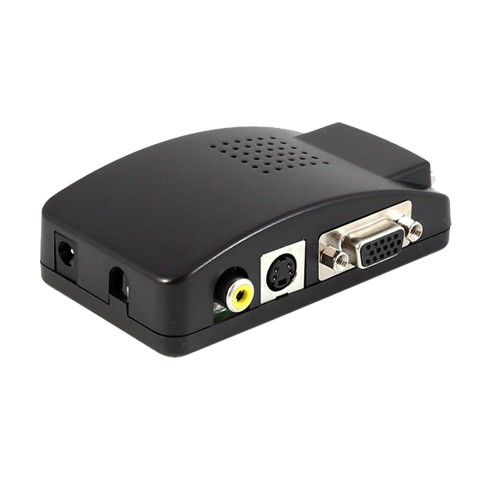

Interface Function Description
Name |
Description |
VGA Out |
To connect with computer display |
Video in |
To connect with fountain head of video frequency |
S-video in |
To connect with signal source with S-end |
VGA in |
To connect with host computer |
DC 5V |
To connect with power supply |
DIP Switch Function Description
Name |
Description |
Resolution |
VGA resolution |
Freeze |
Image Freeze |
AV/S-video |
AV/S-video switch |
VGA in |
Switch VGA Input |
Power |
Power LED |
