Main Features:

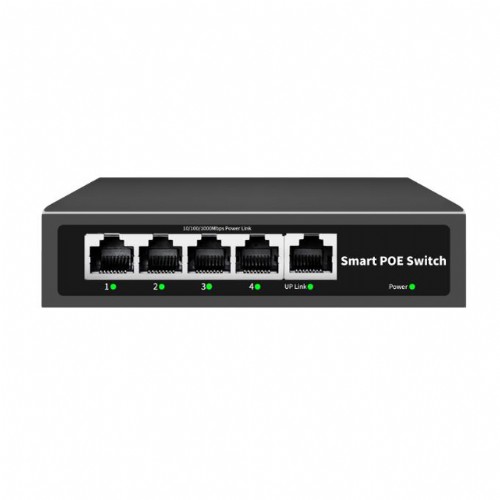

This is a standard plug & play PoE switch, provide 5 10/100/1000M slef-adaption ports, each port support MDI/MDIX auto overturning and line-speed forwarding, 4 ports support PoE function and IEEE802.3af/at to supply power for Ethernet device, dual module automatically detect compatible IEEE802.3af/at standard PD and supply power via Ethernet cable, protect wrongly pluged PD from burning. Every item must be under strict aging test to ensure quality.

1) Support EEE802.3af/at(15.4W/30W) standard, automatically detect IEEE802.3af/at devices firstly and then supply power via Ethernet

2) 5 Ports 10/100/1000M self-adaption RJ45, 4ports support PoE

3) Port power can be upto 15.4W/30W for each port, totally upto 65W.

4) PoE pin Endspan 1/2 (+), 3/6 (–)

5) Support IEEE802.3X full duplex transmission and backpressure half duplex transmission

6) Support port automatically turning(Auto MDI/MDIX)function

7) All ports support line-speed forwarding

8) Support MAC add automatic learning and aging

9) LED indicators; Power input Voltage 110-240V.

10) Simple and convenient to use, no need to configure, plug and play, can flexibly extend network without power layout limitation

Specifications:

Model number	RX-PSE401G
Port	5 port 10/100/1000M self-adaption
	4ports Support PoE
	Support automatic turning
Network transmission	10BASE-T: CAT3/CAT4/CAT5 UTP(≤100m)
Network transmission	100BASE-TX: CAT5 UTP or above(≤100m)
IEEE802.3 af	Support max 15.4W/30W for each port
LED indicator	Power, Link/Act(Light flash), 1000Mbp(Green), PoE power output(Orange)
Dimension(LWH)	125mm115mm33mm
Working Environment	Working temperature: 0~40C
	Storing temperature: -40~70
	Working humidity: 10%~90%(no condense)
	Storing humidity: 5%~90%(no condense)
Power input Overload protection	Built in power supply DC48V 65W
Power input Overload protection	Max 80W
Standards	Support IEEE 802.3, 802.3u, 802.3x, 802.3af/at
Standards	CSMA/CD, TCP/IP
Basic functions	Compatible with IEEE 802.3af standards powered device(PD)
	Port power supply priority
	line-speed forwarding
	MAC audomatically study and age
	IEEE802.3X full duplex transmission and Backpressure half duplex transmission
Switch capacity	1Gbps
MAC add list	1K
Forwarding rate	10BASE-T: 14880pps/port
Forwarding rate	100BASE-TX: 148800pps/port

4Port Auto Detection PoE Switch Ethernet 10/100/1000Mbps Standard 802.3/af/at(US/EU/UK/AU Power plug optional)

IP Cameras (PoE Module inside) and PoE Equipment

1. IP Cameras (PoE Module inside) and PoE Injector

2. IP Cameras (PoE Module inside) and PoE Switch

POE+POE Injector&Splitter

3. IP Cameras (Without PoE Module inside) and PoE Injector/Splitter

Network Video Surveillance System = 1*IPC or Multi-IPC + PC in LAN or NVR in LAN + Internet WAN

The Free UC Video Surveillance Software in disc is is a functionally powerful and easy monitoring software for simple or complicated Network Video Surveillance System establishment.We have detailed with both pictures&written explanations for UC software operations.

The only one camera can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the camera can be stored on the PC in LAN.

Multiple cameras can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the PC in LAN.

Multiple cameras can be seen and managed by NVR software or UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the NVRs in LAN.

Multiple NVRs in different LAN can be seen and managed by NVMS software in PC by remote visit through WAN. The video recorded by the cameras can be stored on the NVR in LAN.
