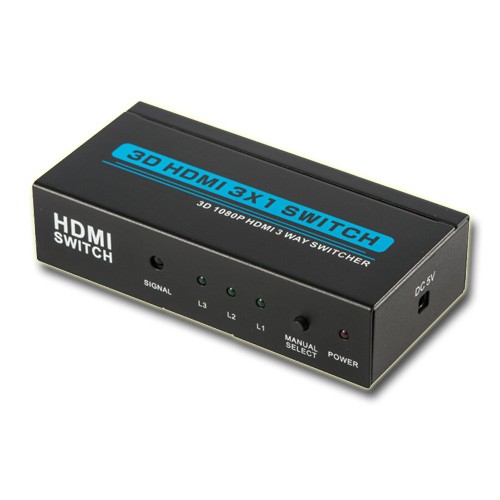

HDMI Switch 3x1,3D full HD 1080P, HDMI 1.3 Version.

Product Specification

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display
device such as HDTV by using manual pushbutton.Doing so can avoid plugging and unplugging
cables frequently.It can optimize your home theater system to the best effect.

Features

1、 Switching is done via itself automatically when signal present on the ports.

2、 Support HDCP protocol and applicable to source device and high definition display device
such as DVD and HDTV which have HDMI ports or digital ports,and are compliant with
HDCP protocol.

3、 Support high resolutions up to 1920*1200,including 480i/p,576p,720i/p,1080i/p.

4、 Support HDMI1.3

5、 Extend the transmission distance and improve transmission signal.

6、 Compatible with DVI by using HDMI TO DVI adapter.

7、 Plug-and-play.

8、 Convenient to connect multi-group input signals to display on one HDTV.

9、 Save space. Allow several sources to use one high definition display device simultaneously.

10、 Metal casing design and overall shielding without signal interference.

11、 Select input port by hand freely.

12、 LED indicates signal and power mode.

13、 Power supply(Please refer to technical parameter)

Technical parameters

Product	3X1 HDMI SWITCH
HDMI Source Input Port	3
Display Device Output Port	1
Source Port Connector	19 PIN HDMI(A TYPE)
Display Device Port Connector	19 PIN HDMI(A TYPE)
HDCP Compliant	YES
Source Device Selection	Push Button IR Remote Control
Input Video Signal	0.5-1.0 Volts P-P
Input DDC signal	5 Volts P-P(TTL)
Deep Color	36bit
Single Link Range	1920*1200
HDMI Version	HDMI1.3
Bandwidth	Up to 340Mhz
Signal Speed	Up to 10.2Gbps
The length of input cable	PS3≤10M；BLUE DVD≤10M
The length of output cable	≤10M
The cable standard	28AWG HDMI1.3
Vertical Frequency Range	60Hz
Power Consumption(max)	1.5 Watts
Operation Temperature	0℃ TO 70℃
Working Voltage	DC 5V
Power Adaptor	5V 1A
Net Weight	132g
Dimension: L×W×H（mm）	100×48×24.5

Application

It switches several routes HDMI signals from source device such as DVD,Satellite Receiver,
Set-top Box,DV Camera,A/V Receiver and other HDMI enabled device to high definition display
device such as HDTV and HDMI Flat Panel Display.

How It Works

Note: When HDMI Switch works, make sure the source device and display device are well
connected with cables.In order to make the relevant ports work properly,firstly power on switch,
the power on source device.

Package Contents

1、HDMI SWITCH: 1Piece

2、5V DC Power Adaptor: 1Piece(Optional)

3、User Manual: 1Piece

4、Remote Control: 1Piece(Optional)
