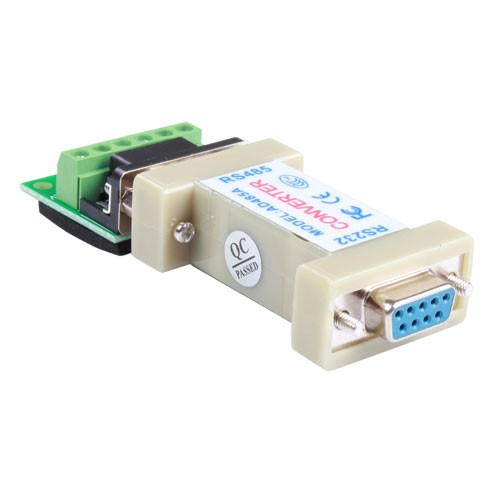

RS232 to RS485,Mini Sized General Serial Converter

Standard: TIA/EIA RS-232, RS-485 standard.
Connector: DB9 female on RS-232 side, DB9 male with terminal block on RS-485 side.
Work methods: asynchronous, point to point or multi-point, 2 wire half-duplex.
Transmission medium: Ordinary Line , twisted pair cable or Shielded Wire
Baud rate: 300~115000bps.
Transmission distance: 5 meters (RS-232 side) and 1200 meters (RS-485 side).
Communication protocol: Transparent.
Environment: -10 to 85 centigrade working temperature, 5% to 95% relative humidity.
Signals: RS-232 TXD, RXD,GND ; RS-485 Date+, Date-,GND .

Specification

Product Name	RS232 to RS485 Converter
Size	8.7 x 3.3 x 1.6cm / 3.4" x 1.3" x 0.6"(LWT)
Material	Plastic & Metal
Color	Black & Green
Net Weight	35g
Package Content	1x RS232 to RS485 Converter

Remark

Have demand for Mini Sized Commercial or Industrial Serial Converters,please contact with us.
