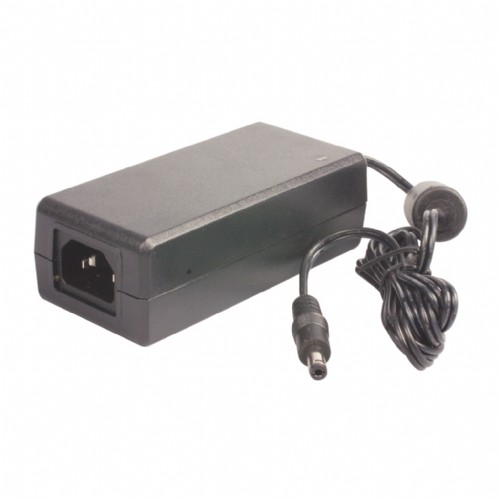

12V AC/DC 5.0A and 60W Desktop Switching Power Adapter for CCTV Camera.

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

Excellent quality 12V DC 5.0A Desktop Switching Power Adapter(AC/DC power supply)High recommend item!!!

Universal AC input / Wide range.
Protections: Short circuit/Over-load/Over-current/Over-voltage protection.
Fully enclosed plastic case

Input/Output Specifications
Input Voltage	AC 100-240,50/60Hz
Range Voltage	AC 90-264, 47/63Hz
Output Power	60W
Output Voltage	12V
Over Voltage Protection	120%min
Over Current Protection	120%min
Short-cut Protection	Auto recover
Load Regulation	±5%
General Specifications
Operating Temperature	0~40
Storage Temperature	-20~+85
Operating Relative Humidity	5%~95%RH
Withstanding Voltage	AC 3000V(Min),5mA(Max)
Insulation Resistance	DC 500V 100M Ω(Min)
MTBF	>50,000Hrs
Size	1205333mm

Remark: Below more model no.for you to choose.

PS36-12,Desktop AC/DC power adapter,Input:100-240V AC 50-60Hz,output:12V DC 3.0A and 36W.with EMI,over-current/voltage/Overload protection,short circuit protection.(IC Solution,high power and low heat.).

PS48-12,Desktop AC/DC power adapter,Input:100-240V AC 50-60Hz,output:12V DC 4.0A and 48W.with EMI,over-current/voltage/Overload protection,short circuit protection.(IC Solution,high power and low heat.).
