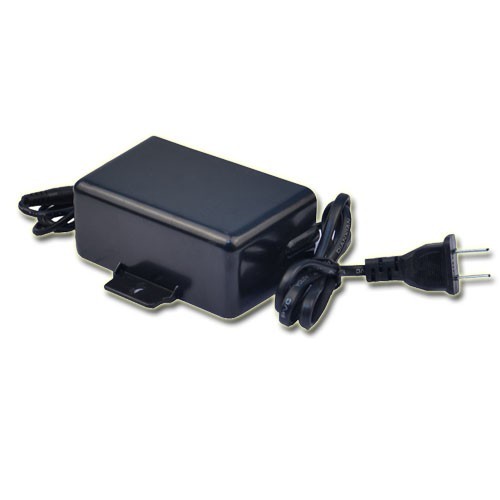

12V DC,2.0A Outdoor Rainproof Switching power supply for cctv,surveillance system and so on.

Short Circuit,Over-Voltage,Over-Current,Over-load protection.
No load power consumption <0.3W
Fully enclosed plastic case
100% full load burn-in test
With Power Indicator.
With Filter.
IC Solution.
SMT Resistor and Capacitor.
With Lightning Protection.
DC:5.5*2.1mm(Default),5.5*2.5mm Optional.

Input/Output Specifications

Input Voltage

AC 100-240,50/60Hz

Range Voltage

AC 90-264, 47/63Hz

Output Power

24W

Output Voltage

12V

Over Voltage Protection

120%min

Over Current Protection

120%min

Short-cut Protection

Auto recover

Load Regulation

±5%

General Specifications

Operating Temperature

0~40

Storage Temperature

-20~+85

Operating Relative Humidity

5%~95%RH

Withstanding Voltage

AC 3000V(Min),5mA(Max)

Insulation Resistance

DC 500V 100M Ω(Min)

MTBF

>35,000Hrs

Size

75*45*28mm

Input/Output Specifications
Input Voltage	AC 100-240,50/60Hz
Range Voltage	AC 90-264, 47/63Hz
Output Power	24W
Output Voltage	12V
Over Voltage Protection	120%min
Over Current Protection	120%min
Short-cut Protection	Auto recover
Load Regulation	±5%
General Specifications
Operating Temperature	0~40
Storage Temperature	-20~+85
Operating Relative Humidity	5%~95%RH
Withstanding Voltage	AC 3000V(Min),5mA(Max)
Insulation Resistance	DC 500V 100M Ω(Min)
MTBF	>35,000Hrs
Size	754528mm
