18channels 30a 12v Switching 360w Cctv Power Supply
Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series

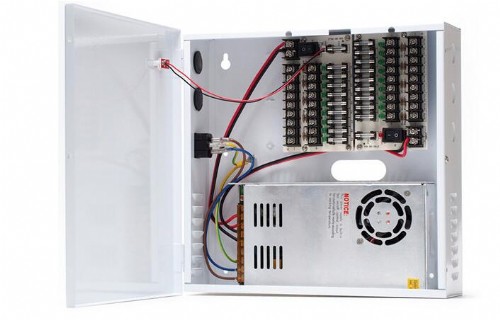

18channels 30a 12v Switching 360w Cctv Power Supply For Camera
Features:
Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection
12v 10a Power Supply
Specification:
Model |
RX-1230-18C |
Product |
360w CCTV Power Supply |
Input Voltage |
110-240V AC |
Output Voltage |
12 VDC |
Output Current |
10A |
Output Channel |
9CH |
Product Dimension |
285*165*90mm |
Package |
5pcs in a carton |
Charging Voltage/Current |
13.8V/1A |
Conversion Efficiency |
≥80% |
Ripple Wave |
(mVp-p): <1% |
Working Temperature |
-20~60℃ |
Storage Temperature |
-35~85℃ |
Humidity |
0%~95%RH |
Overload Protection |
100%~150% rated output power, Auto Recovery |
Overvoltage Protection |
>115%~135% Rated Output Voltage |
Temperature Coefficiency |
±0.003% (0~50℃) |
