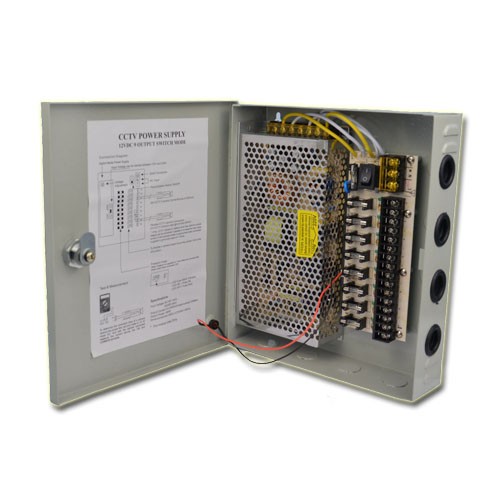

8Channel 10.0A and 120W Box power supply for cctv and Security Cameras.

• For 12VDC individually fused outputs.
• Circuit Short protection.
• Over-load protection.
• AC power LED indicator.
• Individual LED for each output.
• Power ON/OFF switch.
• Unit maintains camera synchronization.
• Easy installation saves time and eliminates costly labour.
• 100% full load burn-in test.
• Spare fuses included.

Specification
Input Voltage	AC110/220V
Input Voltage Frequency	50/60Hz
Output Specification
Output Voltage	12 VDC
Total Output Current	10 A
Total Outputs	120W
Fuse Type	Glass Fuse (Ceramic optional)
Fuse Rating	0.5 Amps / 250VAC,1Amps/250VAC
Protection
General Protection	Each output has individual fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working
Circuit Short Protection	When short condition occurs, individual fuse will open the circuit,when condition removed, replacing another new fuse will back to close.
High Voltage Protection	When high voltage occurs, the surge protection will be hit through to protect the connected device
Over Current protection	When over current occurs, the power supply will automatically switch toself-protection status, when condition removed, then switch back to normal
Different Currents output	Multiple and different Currents output for different cameras
Feature	Power ON/OFF switch;Spare fuses included
	Unit maintains camera synchronization
	Easy installation saves time and eliminates costly labor
Application
CCTV	Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control	Reader, Lock, Panel, etc.
