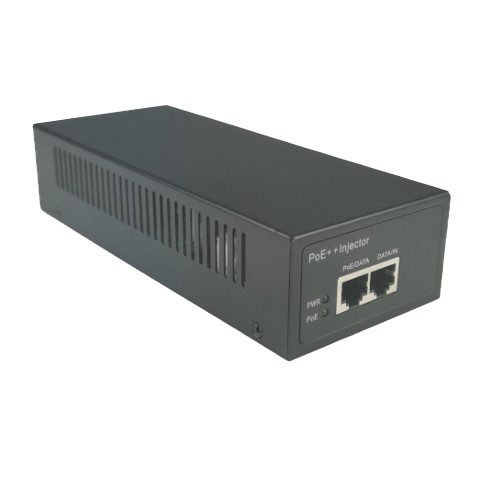

90W POE Injector Standard IEEE802.3BT Gigabit

• 4-pair power up to 90W

• Compliant with IEEE 802.3bt standard - higher power

• Compatible with all IEEE 802.3at, 802.3af and legacy power devices

• Safe: Low power devices receive only the power they need, 2 pairs of PDSs receive power through 2 pairs

• Power over Ethernet is safe and reliable

• Automatic detection and protection of non-standard Ethernet terminations

• Supports 10/100/1000baset applications

• Compact design for easy installation of WLAN access points

The RX- PSE802BT single-port Gigabit Ethernet power supply unit is suitable for indoor use. It can work normally under the input voltage of 100vac ~ 240VAC. The power supply is connected to the network terminal equipment through the super 5 cable. It has an Ethernet data port and an output port that combines data and power. The device can provide PoE power supply applications that conform to the international standard of ieee802.3af/at/bt for unidirectional Ethernet devices, such as advertising machines, small base stations, switches, wireless APs, industrial network terminals, network cameras, etc. Where power is supplied or powered using an Ethernet network cable, an efficient engineering solution is required to improve system reliability and simplify equipment installation.


Standard: IEEE802.3af/at/bt

Number of ports: 1

Pass Data Rate: 10/100/1000 Mbps

Pin assignment and polarity: 1,2,4,5+/3,6,7,8-

Output supply voltage: 54-57vdc

User port power: maximum 90W

AC input voltage: 100 to 240 VAC

AC frequency: 50 to 60 Hz

Bare metal size: 188*78*44 mm

Packing size: 210*125*55mm

Weight 0.5kg

Indicator light: AC power (green) POE (yellow)

Connectors: Shielded RJ-45, EIA 568a and 568B

Installation structure: wall-mounted

Operating temperature: -20°-50°C

Storage temperature: -40°-85°C

Storage humidity: 95% maximum, non-condensing

Working altitude: –1000 to 10000 feet (–304.8 to 3048 meters)
