POE Injector,Data Rate:Gigabit 10/100/1000Mbps Standard IEEE802.3at and 30.0W.

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

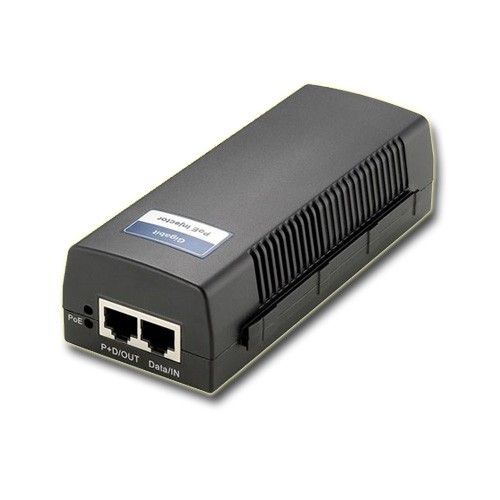

POE Injector,Gigabit 10/100/1000Mbps,Standard IEEE802.3at and 30W.(RX-PSE802G)

Advanced POE Solution

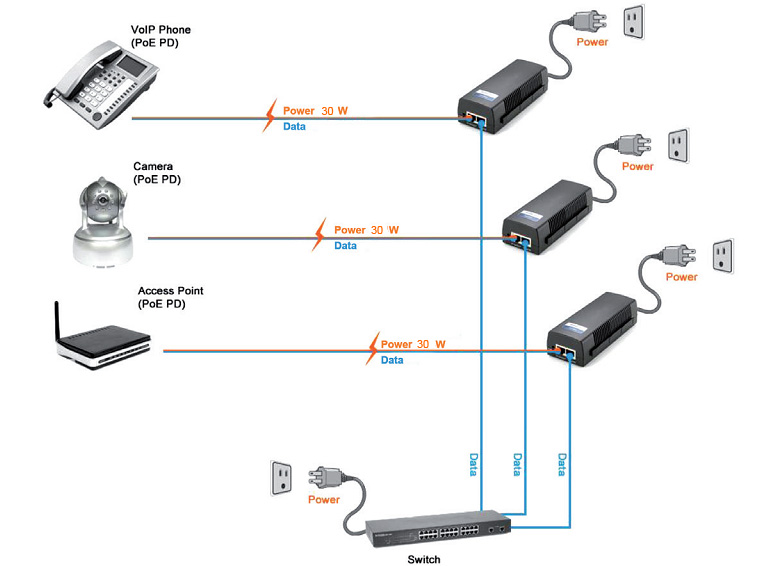

The RX-PSE802G is a single port,high power POE PSE Solution for remote POE PD devices.Generating up to 30W,RX-PSE802G Supplies remote power for new applications such as wireless access points.PTZ IP Cameras and video phones.It complies with IEEE802.3at POE Standard and is backwards to IEEE802.3af.It can work with 10/100 Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE802.1 In access points.For all the function featured in RX-PSE802G,people can get the benefit of flexible network installation at lower cost,less downtime,It also provides a high-bandwidth pipe to the network.

Main Features
Up to 30W of POE Power
IEEE802.3at Compliance
Compatible with IEEE802.3af or legacy POE applications
Safe on Low Power Devices Receive Only the power they need
Safe and reliable power to WLAN Access Points
Automatic Detection and Protection of Non-standard Ethernet terminals
Supports 10/100Base-T LAN enviroment
Unique interlocking feature for easy installation

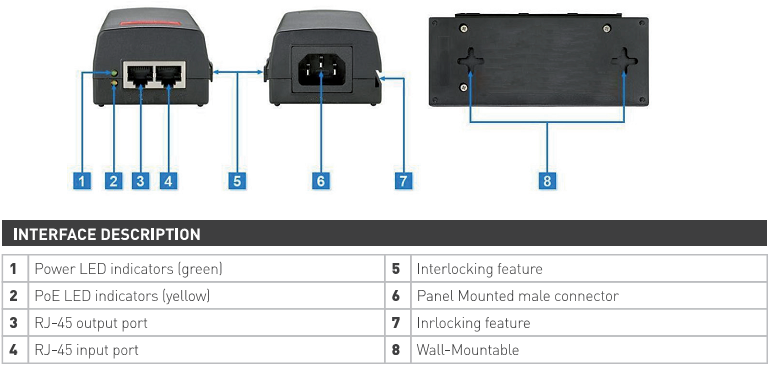

Interface Discription

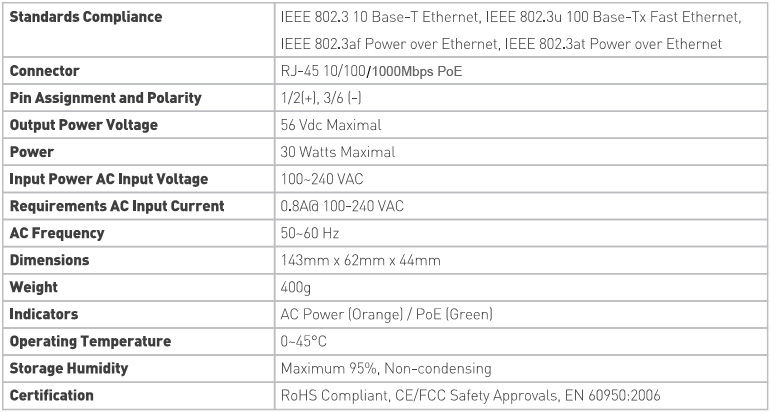

Technical Specification

Package Information
1PC/Brown Box,40PCS/Master Carton
